The product description：Seajee UK6N terminal adopts PA66 as injection shell material, which has flame retardant, acid resistance, high temperature resistance, cold resistance and other properties, and can be widely used in various environments.
Print current pageDetails description

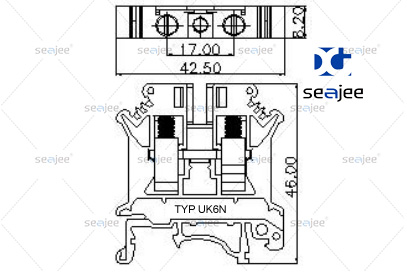

- Product size
- Technical parameters
- Enclosure
- Application scenarios
??
|
標?準 |
UL |
IEC |
|
額定電壓 |
600V |
800V |
|
額定電流 |
50A |
57A |
|
線?徑 |
24-8AWG |
0.2-6mm2 |
|
厚度/寬度/端板厚度 |
8.2/42.5/1.6mm |
|
|
高度(NS35∶7.5 / NS35∶15 / NS32) |
47/54.5/52mm |
|
|
額定沖擊電壓/污染等級 |
8kV/3 |
|
|
剝線長度 |
10 mm |
|
|
螺釘規格/扭距 |
M4/1.5Nm-1.8Nm |
|
|
塞規 |
A5 |
|
|
絕緣材料/阻燃等級 |
PA/V0-V2 |
|
