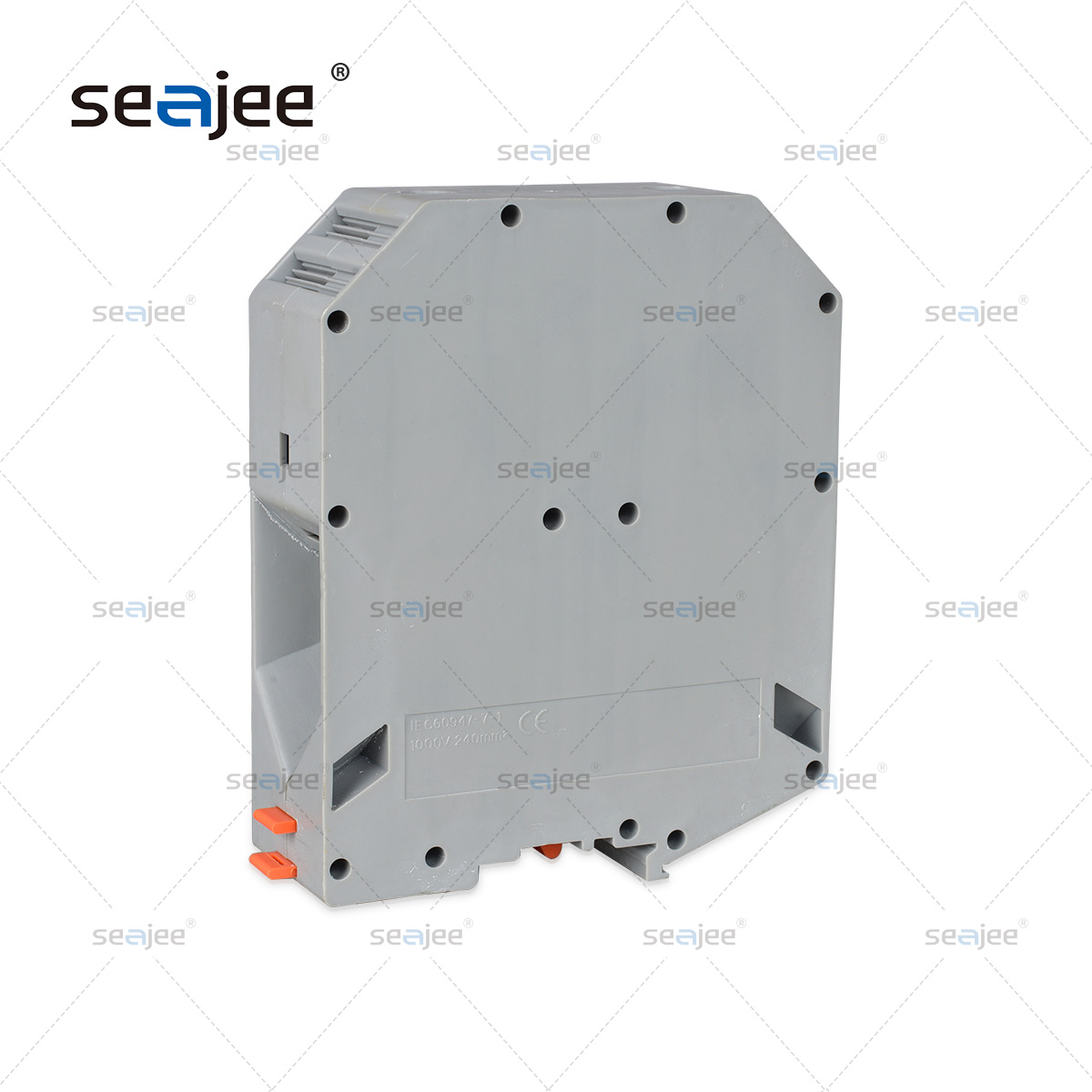

The product description：UK240 square universal terminal UKH240 high current terminal, nominal working voltage: 1000V, nominal working current: 415A, wiring mode: screw connection, connection quantity: 2, cross section: 70 mm 240 mm AWG: 2/0 - 500 kcmil, width: 36 mm.
Print current pageDetails description
- Product size
- Technical parameters
- Enclosure
- Application scenarios
?
|
標(biāo)?準(zhǔn) |
UL |
IEC |
|
額定電壓 |
726V |
1000V |
|
額定電流 |
300-350A |
415A |
|
線?徑 |
0-500AWG |
70-240mm2 |
|
厚度/寬度/端板厚度 |
36 / 100 / 0 mm |
|
|
高度(NS35∶7.5 / NS35∶15 / NS32) |
- /131.5 / 129.5mm |
|
|
額定沖擊電壓/污染等級 |
8kV / 3 |
|
|
剝線長度 |
40 mm |
|
|
螺釘規(guī)格/扭距 |
M10 / 25Nm-30Nm |
|
|
塞規(guī) |
B15 |
|
|
絕緣材料/阻燃等級 |
PA / V0-V2 |
|
?
