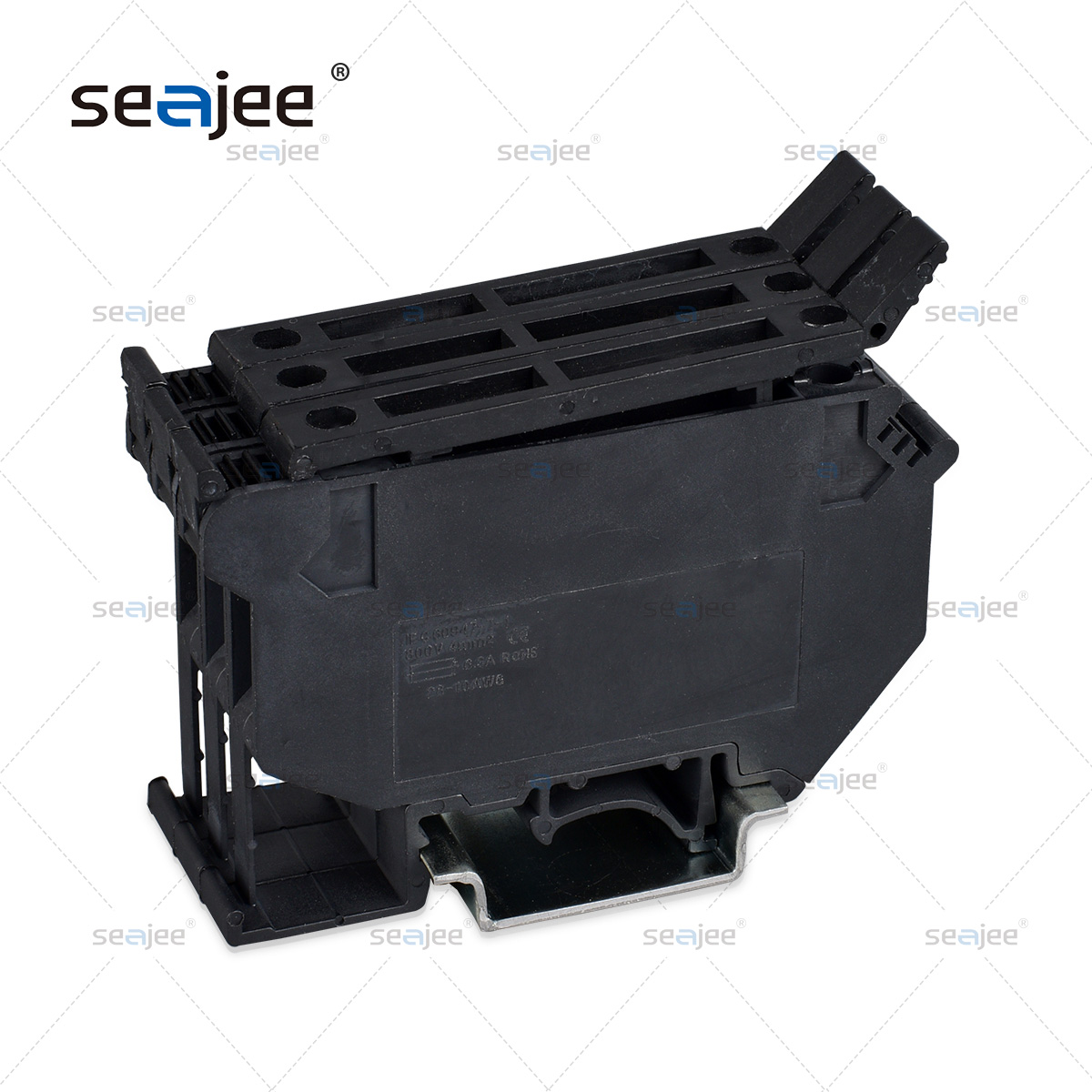

The product description：Uk5-hesiled lamp type fuse terminals (lamp type current terminals), can be customized with different voltages: LED12V,LED24V,LED36V, color: gray/black, rigid wire :0.2-4mm.
Print current pageDetails description
- Product size
- Technical parameters
- Enclosure
- Application scenarios
|
認 證 |
C E |
||
|
標 準 |
UL |
IEC |
|
|
額定電壓 |
600V |
800V |
|
|
額定電流 |
6.3A |
6.3A |
|
|
線 徑 |
24-12AWG |
0.2-4mm2 |
|
|
厚度/寬度/端板厚度 |
8.2/72.5/-mm |
||
|
高度(NS35∶7.5 / NS35∶15 / NS32) |
56.5/64/61.5mm |
||
|
額定沖擊電壓/污染等級 |
6kV/3 |
||
|
剝線長度 |
8 mm |
||
|
螺釘規(guī)格/扭距 |
M3/0.5-0.8Nm |
||
|
塞 規(guī) |
A4 |
||
|
絕緣材料/阻燃等級 |
PA/V-0 |
||
|
說 明 |
型 號 |
包裝數(shù) |
|
|
(1)保險絲端子,保險絲規(guī)格為 5×20、5×25、6.3×32mm |
UK5-HESI |
50 |
|
|
(2)邊插橋接件 |
2-位 |
EB 2-8 |
100 |
|
3-位 |
EB 3-8 |
50 |
|
|
10-位 |
EB 10-8 |
10 |
|
|
(3)測試插孔座 |
|
|
|
|
(4)絕緣測試插孔座 |
|
|
|
|
(5)標記條 (特殊字符定做) |
ZB 8 |
100 |
|
