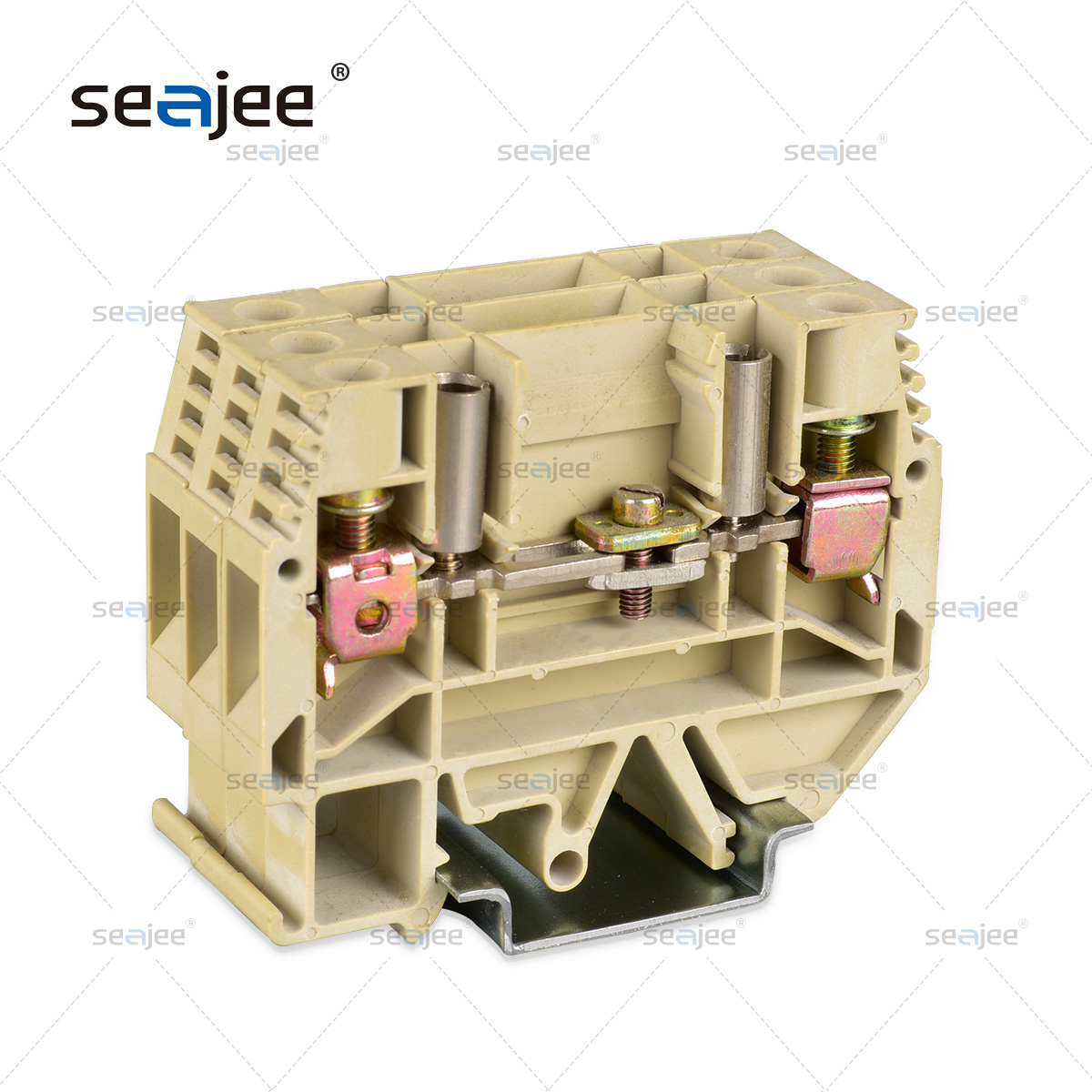

The product description：WTL6/1 general test terminal simple circuit testing can be performed. A simple transformer test loop only need two pieces of test terminal, terminal is equipped with longitudinal sliding block in the street.
Print current pageDetails description
- Product size
- Technical parameters
- Enclosure
- Application scenarios
|
認 證 |
C E |
||
|
標 準 |
UL |
IEC |
|
|
額定電壓 |
300V |
500V |
|
|
額定電流 |
50A |
41A |
|
|
線 徑 |
20-8AWG |
0.5-6.0mm2 |
|
|
厚度/寬度/端板厚度 |
8/65/1.5mm |
||
|
高度(NS35∶7.5 / NS35∶15 / NS32) |
48/56/50mm |
||
|
額定沖擊電壓/污染等級 |
6kV/3 |
||
|
剝線長度 |
12 mm |
||
|
螺釘規格/扭距 |
M3.5/0.8-1.6Nm |
||
|
絕緣材料/阻燃等級 |
PA/V-0,V-2 |
||
|
說 明 |
型 號 |
包裝數 |
|
|
(1)端子 |
WTL6/1 |
50 |
|
|
(2)端板 |
D-WTL6/1 |
20 |
|
|
(3)隔板 |
D-WTL6/1 |
20 |
|
|
(4)小隔板 |
TSCH 2 |
100 |
|
|
(5)聯絡組件 |
2 路 |
Q2-6 |
20 |
|
3 路 |
Q3-6 |
20 |
|
|
4 路 |
Q4-6 |
20 |
|
|
10 路 |
|
|
|
|
(6)閃電標記牌 |
|
|
|
|
(7)測試插孔 |
|
|
|
|
(8)護塊 |
|
|
|
|
(9)測試插頭 |
PS 4 |
20 |
|
|
(10)活動熔芯架 |
|
|
|
|
(11)標記條 |
DEK 8 |
|
|
