產(chǎn)品描述：
打印當前頁詳情描述

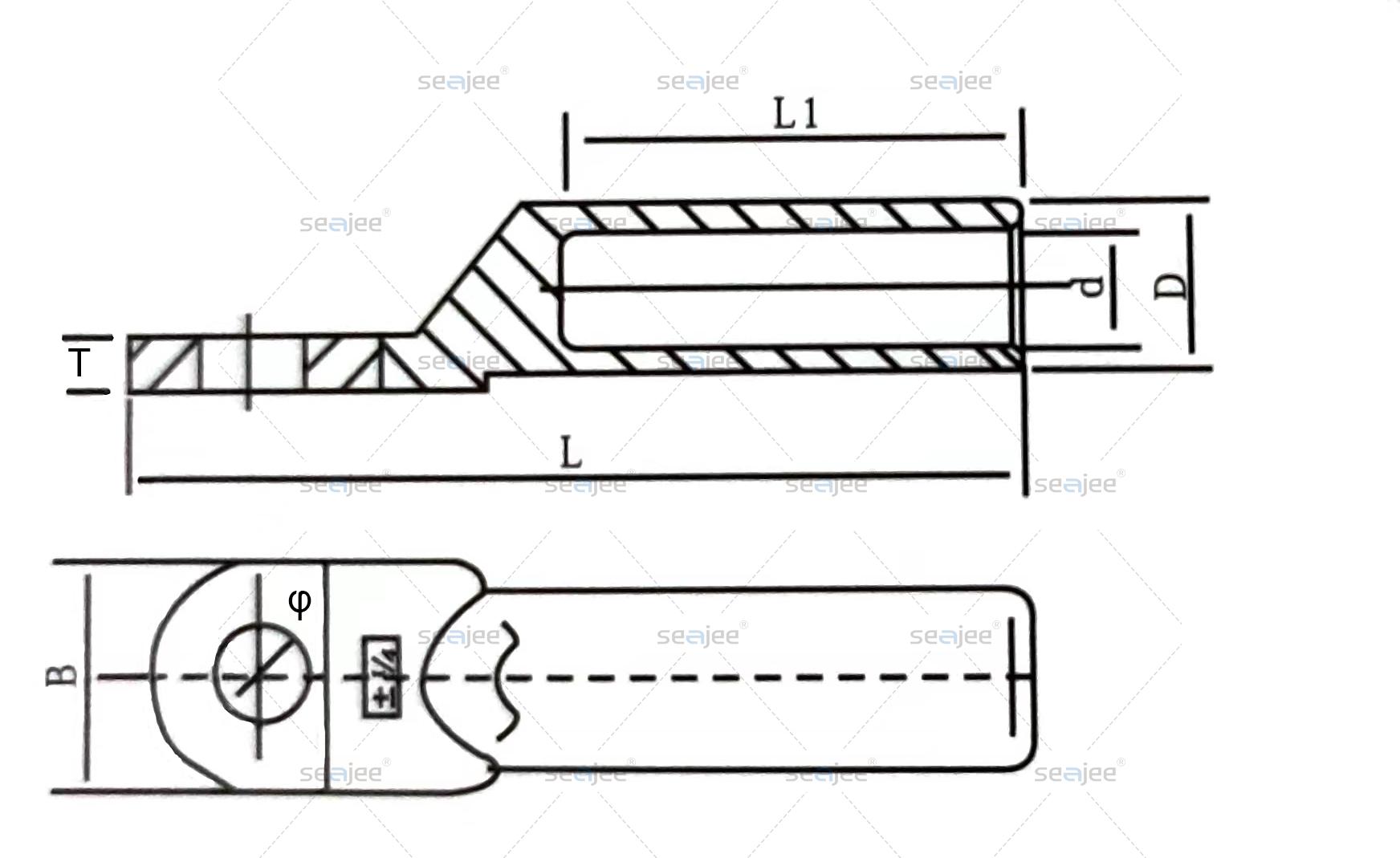

- 產(chǎn)品尺寸
- 技術參數(shù)
- 附件
- 應用場景
|
DT型號-φ |
板寬B |
板厚T |
全長L |
孔深 L1 |
管外徑D |
管內(nèi)徑d |
個重/斤 |
|
10-8 |
16 |
2.2 |
63 |
32 |
9 |
5.2 |
0.044 |
|
16-8 |
16 |
2.2 |
66.2 |
33.4 |
10 |
6.2 |
0.0552 |
|
25-8 |
18 |
2.6 |
72 |
33.4 |
11.2 |
7 |
0.07 |
|
35-10 |
20 |
2.6 |
75.8 |
39 |
12.2 |
8.2 |
0.084 |
|
50-10 |
23 |
3.4 |
86.2 |
42 |
14 |
9.8 |
0.129 |
|
70-12 |
26 |
4 |
93 |
45 |
16.2 |
11.4 |
0.175 |
|
95-12 |
28 |
4 |
103 |
48 |
18 |
13.8 |
0.232 |
|
120-14 |
30 |
4.6 |
110.4 |
50.2 |
20 |
14.8 |
0.3 |
|
150-14 |
34 |
5.2 |
117.2 |
52.2 |
22 |
17.2 |
0.388 |
|
185-16 |
37 |
5.8 |
124 |
57.4 |
24 |
19 |
0.48 |
|
240-16 |
40 |
6.4 |
135 |
63 |
27 |
20.8 |
0.64 |
|
300-21 |
50 |
7 |
150 |
67 |
30 |
23 |
0.93 |
|
400-21 |
50 |
7.6 |
158 |
68 |
34 |
26.5 |
1.18 |
|
500-21 |
54.2 |
7.9 |
166 |
74 |
38 |
29 |
1.6 |
|
630-21 |
59.8 |
9.8 |
203 |
78.6 |
45 |
34.2 |
2.76 |
